Mobile Broadband Traffic
Japan
Mobile Broadband Traffic: How often are mobile phone users connecting on 4G, 5G-SA, and 5G-NSA, as opposed to connecting on 2G and 3G, or receiving No Signal whatsoever?
Unlike other mobile traffic metrics, M2’s analysis does not take payload into consideration because of its potential to bias the analysis (faster networks allow greater data flow). We focus solely on the percentage of measurements categorized by network connection type and the associated cell identities with those measurements from the M2 dataset. Our Cell ID counts are the count of unique Cell IDs by Mobile Network Operator (MNO), Network Type, and Country from our crowdsourced dataset.

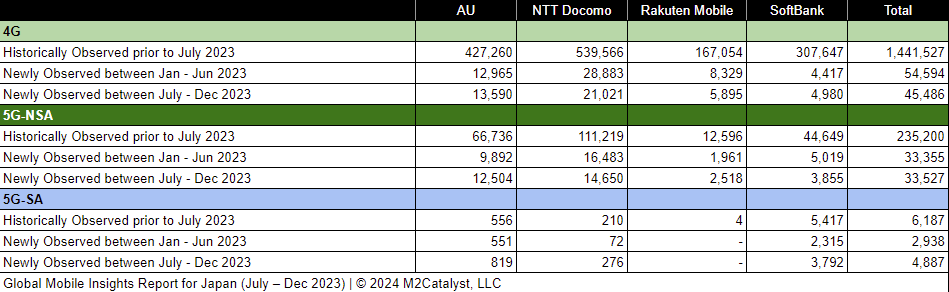

Table 1. Japan Cell ID Counts by MNO on 4G & 5G Network Types
Key Findings for Table 1.
• Table 1 displays the number of unique Cell IDs newly observed between January and June 2023 and those newly observed between July and December of 2023. As a reference, historically observed Cell IDs dating 18 months prior to July 2023 are also included. Newly observed Cell IDs can be attributed to either new hardware deployed by MNOs or an expansion in the footprint of our dataset.

• M2’s dataset for the 2nd half of 2023 contains 83,900 newly observed 4G/5G mobile broadband Cell IDs. A more in-depth view of the Cell IDs and their associated details by location over time can be visualized on M2's Crowd SiteIntel platform.

• The number of 5G-SA Cell IDs is approximately 6% of the newly observed Cell IDs with Softbank contributing the most.
Table 2. Japan Percentage of Records by MNO

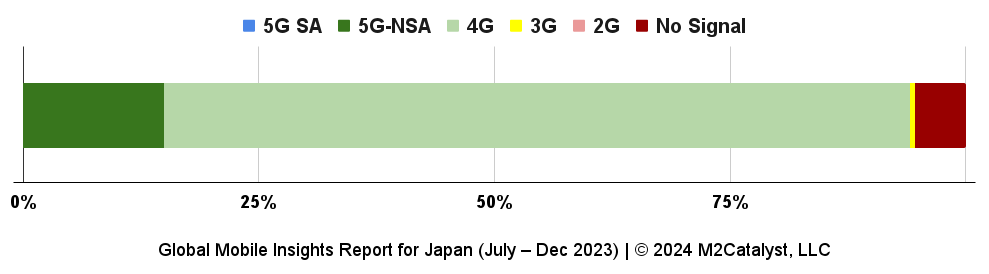

Chart 1. Japan Mobile Traffic Percentage by Network Type
Key Findings for Chart 1.
• Chart 1 displays the percentage of users (across all MNOs in this study) reporting mobile traffic by network types: 5G-SA, 5G-NSA, 4G, 3G, 2G, or no signal.

• The Mobile Traffic percentage by Network Type shows 15% of the mobile connections on 5G-NSA and 79% on 4G.

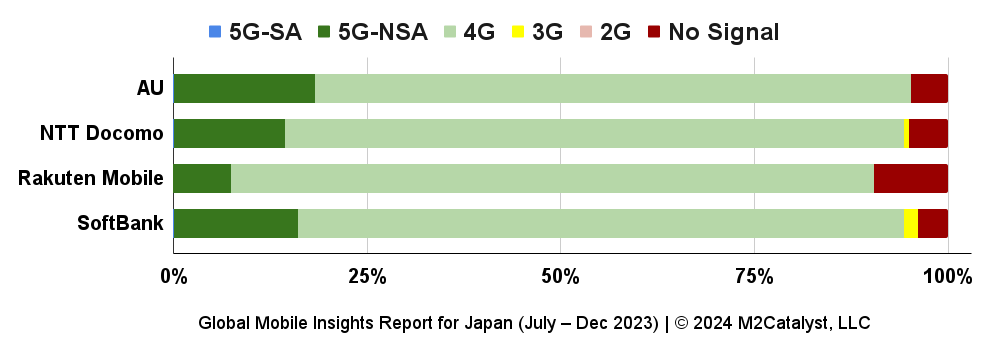

Chart 2. Japan Mobile Traffic Percentage by MNO and Network Type
Key Findings for Chart 2.
• Chart 2 displays the percentage of mobile traffic by MNO and network type.

• AU, NTT Docomo, and Softbank each have over 94% mobile traffic on a network type of 4G or higher.

• While Rakuten Mobile shows the least percentage of mobile traffic on 4G or higher and the greatest percentage of no signal, records from Rakuten Mobile make up only 11% of the M2 dataset.

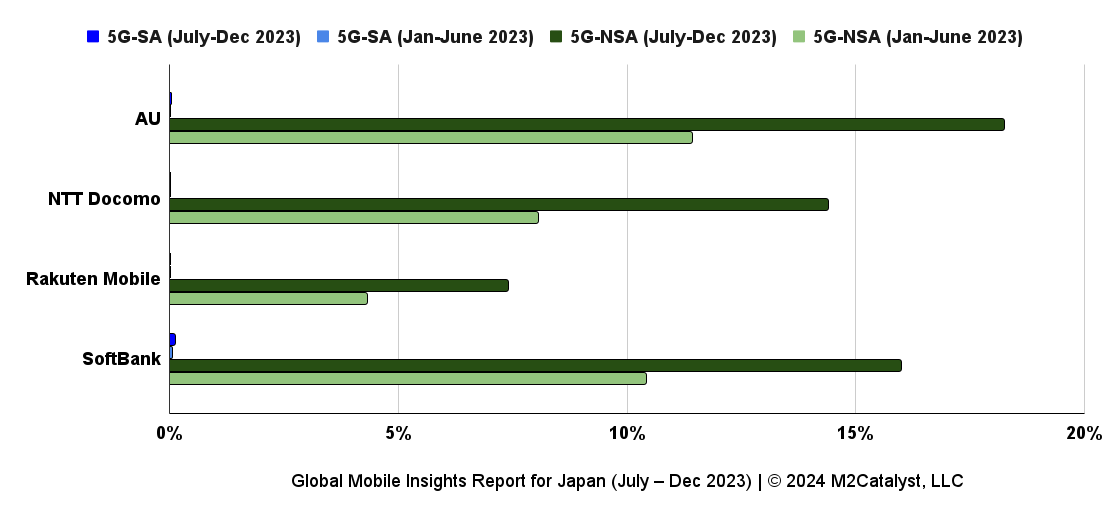

Chart 3. Japan Mobile Traffic Percentage on 5G by Reporting Period
Key Findings for Chart 3.
• Chart 3 displays the percentage of users reporting 5G-SA and 5G-NSA network types over different reporting periods.

• All MNOs have increased the amount of traffic on their 5G-NSA networks with NTT Docomo showing the largest percentage increase.
Your Next Step
As part of our suite of solutions, M2 offers Crowd SiteIntel (CSI), a powerful data analytics and visualization platform capable of identifying competing MNO cell site locations with an AI-generated Global PoP database or identifying coverage footprints of current cell sites to predict network densification needs. Experience the capabilities of Crowd SiteIntel today.

Schedule a demo on how to identify competing MNO cell site locations with the CSI AI-generated Global PoP database.
Learn how to Identify coverage footprints of current cell sites to predict network densification needs using the Crowd SiteIntel platform.
Utilize the CSI to monitor where and when MNOs deploy their licensed spectrum.
Study Methods:
The extensive dataset for this global study, comprising hundreds of billions of records, was collected between July 1 and December 31, 2023 from mobile applications installed on millions of mobile devices. All data collection was carried out in accordance with our privacy policy, with explicit permission obtained from the owners of the mobile devices.
